Hypervalence revisited. The odd case of hexamethyl selenium.

No Gravatar

One thread that runs through this blog is that of hypervalency. It was therefore nice to come across a recent review of the concept[1] which revisits the topic, and where a helpful summary is given of the evolving meanings over time of the term hypervalent. The key phrase “it soon became clear that the two principles of the 2-centre-2-electron bond and the octet rule were sometimes in conflict” succinctly summarises the issue. Two molecules that are discussed in this review caught my eye, CLi6 and SeMe6. The former is stated as “anomalous in terms of the Lewis model“, but as I have shown in an earlier post, the carbon is in fact not anomalous in a Lewis sense because of a large degree of Li-Li bonding. When this is taken into account, the Lewis model of the carbon becomes more “normal”. Here I take a look at the other cited molecule, SeMe6.

I should start by summarising what I think are two fundamental ways in which electrons can be added to the valence shell of a main group element.

  • If an s/p basis only is used for the (main group) valence shell, then once eight electrons have populated the four bonding molecular orbitals constructed from this basis, additional electrons can then go into the four antibonding orbitals. This simple concept is often taught as an explanation for why the bond orders across the range N≡N, O=O, F-F and Ne…Ne decrease regularly (in fact one could also add CC to the left of this series, which is thought to have a weak quadruple bond). The Lewis octet is maintained throughout.
  • The second fundamental possibility is to expand the valence shell basis set to s/p/d or s/s/p/p (the second s or p-shell is the Rydberg level, i.e. 3s for carbon) or even s/s/p/p/d. That would be a true Lewis octet expansion, which depends on identifying significant Rydberg occupancy. This latter is in fact very rare, and few examples have been conclusively identified. One such as been discussed on this blog  and more examples were presented at the Aachen bond Slam in September 2017. Unlike the first mechanism (which reduces bond orders), this one actually increases bond orders and any bonds where the atomic orbital contributions have a significant Rydberg component can be considered as “Hyperbonds“.

One can then address the issue of hypervalency (and any octet expansion) by analysing the basis set contributions of the orbitals. These orbitals can be either canonical molecular orbitals or localised (NBO) orbitals. If a single determinant wavefunction is appropriate, then the orbitals would be doubly occupied (for closed shell species). If the molecule has multi-reference character, then of course fractional electron occupancy of these orbitals may be required (as would e.g. be the case for ozone, O3, another molecule asserted in the review as hypervalent[1]).

There are other ways of analysing the wavefunction. The one discussed at length in the review[1] is from an atomic charge map, but also mentioned is an ELF partitioning. This derives not from an orbital population but from the distribution of a function (ELF) calculated from the electron density itself. It was this latter method that was cited for SeMe6. The ELF method partitions electrons into so-called basins, which can be monosynaptic (lone pairs and ionic bonds), disynaptic (covalent bonds) and more rarely trisynaptic (3-centre bonds). Using this analysis, six disynaptic octahedrally-arranged ELF basins were located for  SeMe (“in which the Se–C bonds are relatively non-polar, can have electron populations exceeding 8 at the central atom”[1]) and for which the total integration cames to 11.34e (FAIR Data DOI for this calculation can be see at 10.14469/hpc/3219).

The key phrase is “non-polar”, since the Lewis concept relates to shared electron pair or covalent hypervalency. It was this aspect that I focused on seven years back in looking at whether e.g. IF7 was hypervalent (along with I(CN)7). These were too ionic to reveal disynaptic covalent ELF basins. So in an effort to reduce the polarity, I tried II7 and At.At7, on the grounds that these homonuclear molecules might be less polar. The seven I-I or At-At ELF disynaptic basins integrated to totals of 6.55 and 6.47e respectively; there was no evidence of “octet expansion” for either central halogen. Instead of course, the six electrons in the octet-excess needed to create seven I-I bonds actually populate I-I antibonding orbitals, as per method 1 above. Accordingly the I-I bond orders reduce from 1.0 to e.g. 0.47 for the axial substituents and 0.37 for the five equatorial groups.

One interesting property of the centroid of the ELF basins is that you can infer the polarity of the bond from its position along the bond axis. For II7, the centroids are displaced towards the central iodine, indicating it is more electronegative, and away from the terminal iodine, indicating it is the electropositive partner. I mention this since the ELF basins for SeMe6 show the centroids to be strongly displaced towards the carbon and away from the Se (0.38/0.62), indicating that this molecule is in fact polar and NOT non-polar as was asserted.

To follow-up this latter observation, I did an NBO analysis of the wavefunction for SeMe6 (FAIR Data DOI: 10.14469/hpc/3220). This reveals the following properties.

  • Se populations: [core]4S( 1.30)4p( 3.04)4d( 0.06)5p( 0.01) of which Rydberg = 0.06516, natural charge on Se, 1.60224
  • C populations:  [core]2S( 1.20)2p( 3.65)3S( 0.01)3p( 0.01) of which Rydberg = 0.01838, natural charge on C -0.86670
  • H populations:  1S( 0.80)
  • Total Rydberg population: 0.20556
  • Wiberg Se-C bond orders:  0.6689
  • Wiberg bond indices:  Se 4.0431, C 3.8252,  H 0.9621

So according to this orbital-based analysis, SeMe6 is in effect a partially ionic compound with no evidence of significant Rydberg occupancies and hence no evidence of any octet expansion at Se. Thus we see two different interpretations emerging, depending on the analytical method used:

  1. SeMeis a polar molecule with no hypervalent attributes as judged using orbital analysis.
  2. As a polar molecule, it has six methyl carbanion-like substituents in which the carbon “lone pairs” all point towards the Se, manifesting as disynaptic ELF basins and indicating a total valence-basin octet-expanded population of 11.34e at Se. Even though this octet expansion originates mostly from the carbon atomic orbitals, the disynaptic nature of these valence basins means that the Se could indeed be defined as hypervalent.

Well, SeMe6 has turned out to be rather less clear-cut than implied by the assertion “in which the Se–C bonds are relatively non-polar”. There are however possible modifications to SeMe6 that might yet make it less polar. These may be the subject of a follow-up post.

Popular Posts:


Associated Links

  • Chemical bonding
  • Hypervalent molecule
  • Molecular geometry

  • References

    1. M.C. Durrant, "A quantitative definition of hypervalency", Chem. Sci., vol. 6, pp. 6614-6623, 2015. http://dx.doi.org/10.1039/c5sc02076j

    Tags: , , ,

    4 Responses to “
    Hypervalence revisited. The odd case of hexamethyl selenium.

    1. Critical Point says:

      Nice post Professor Rzepa.

      Could QTAIM analysis shed light in this issue? For example describing the bonds as ionic or covalent? or maybe accounting charge around atomic nucleus basin?

      What could QTAIM say about hypervalency in this SeMe6 example?

    2. Henry Rzepa says:

      QTAIM was discussed extensively as a technique in the review article cited, although it was not applied to SeMe6. I will put up a QTAIM analysis shortly.

    3. Henry Rzepa says:

      I have added a full QTAIM analysis to the FAIR data deposition https://doi.org/10.14469/hpc/3219 for anyone who wishes to go through the (extensive) set of calculated properties. Certainly it appears polar, but less so than indicated by the NBO analysis.

    4. Henry Rzepa says:

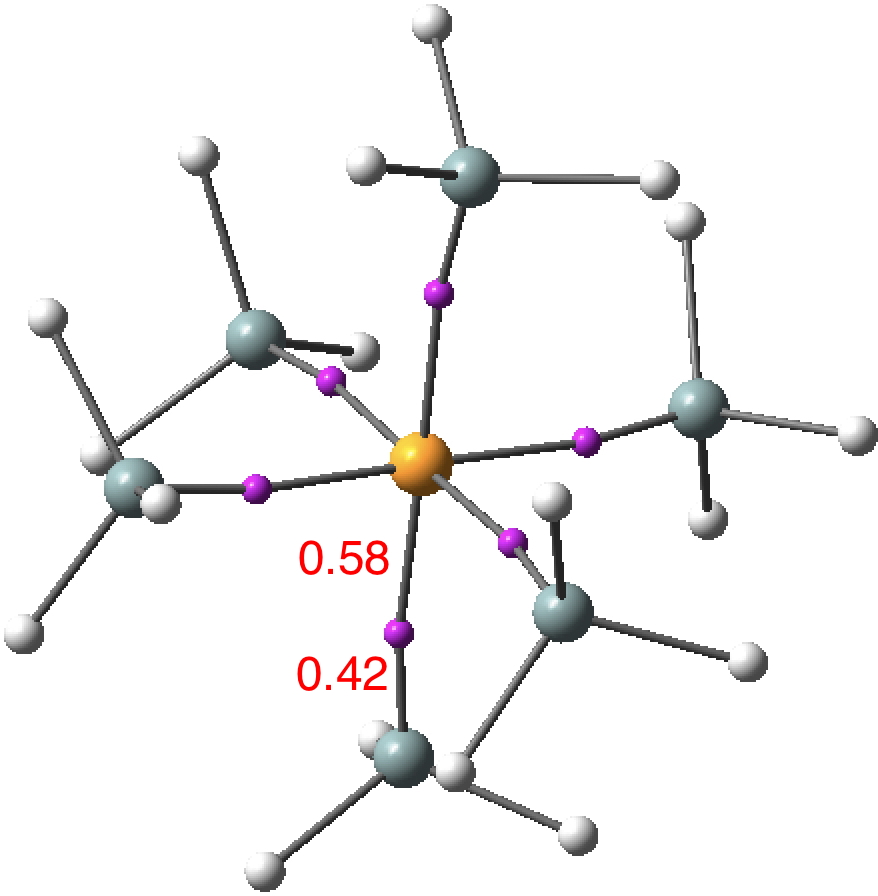

      Here is the equivalent analysis for Se(SiH3)6 (FAIR Data 10.14469/hpc/3231 ).

      The six ELF basins integrate to 11.77e. The NBO charges are Se; -0.18765, Si +0.44317, H -0.14285 which indicates reversed polarity at the Se. The natural electronic configurations are Se: [core]4S(1.64)4p(4.46)4d(0.08), Si [core]3S(1.16)3p(2.37)4S(0.01)3d(0.02)4p(0.01) and the total Rydberg population is 0.34703e. The Wiberg bond index per atom at Se is 3.0467.

      All this suggests this species is hypervalent as indicated by ELF density analysis and merely hypercoordinate as suggested by NBO orbital analysis.
