How does carbon dioxide coordinate to a metal?

No Gravatar

Mention carbon dioxide (CO2) to most chemists and its properties as a metal ligand are not the first aspect that springs to mind. Here thought I might take a look at how it might act as such.

There are up to five binding modes with one metal that one might envisage:

  1. Bonded interaction with the metal via just one oxygen atom,
  2. Bonded interaction via just the central carbon atom,
  3. Bonded interaction via the π-face of one C=O double bond,
  4. A weaker non-bonded interaction via carbon, or
  5. via oxygen.

Search queries of the Cambridge structure database (CSD) for these five modes are illustrated below (dataDOI: 10.14469/hpc/2524), with the constraints being applied to how many bonds (of unspecified type) each atom carries, along with no disorder and no errors. Thus query 1 is constrained by 1-coordination on one oxygen, and two on the carbon and other oxygen.

  1. This query yields four hits: 10.5517/ccvcdq9, 10.5517/cc12nq6n10.5517/cc12nq5m10.5517/cc12nq4l. The angle subtended at the central carbon of the CO2 ranges from 172-176°, a very modest bending of the linear CO2. There are no examples where the metal is bonded to both oxygens.
  2. The next category involves the metal binding just to the central carbon. Two examples are known, differentiated from O-coordination by a more acute angle at the central carbon of 121-132°.
  3. The π-coordinated type requires a slightly more complex search query, shown below. The π-complex is defined as adding one coordination to each of one oxygen and the carbon.

    This reveals 16 examples:

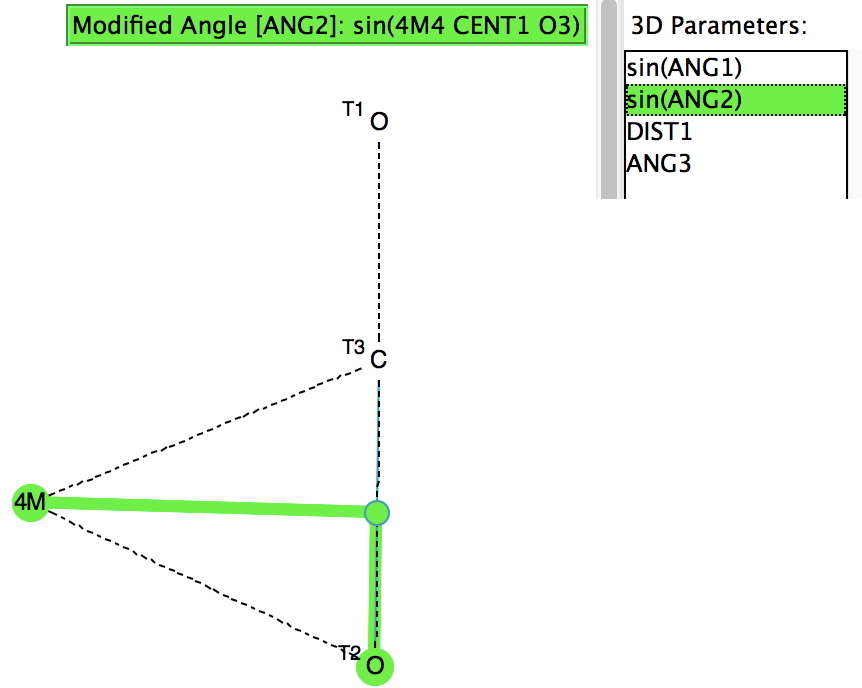

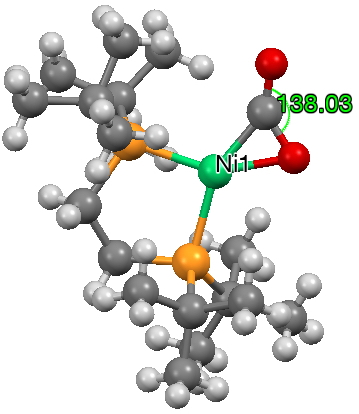

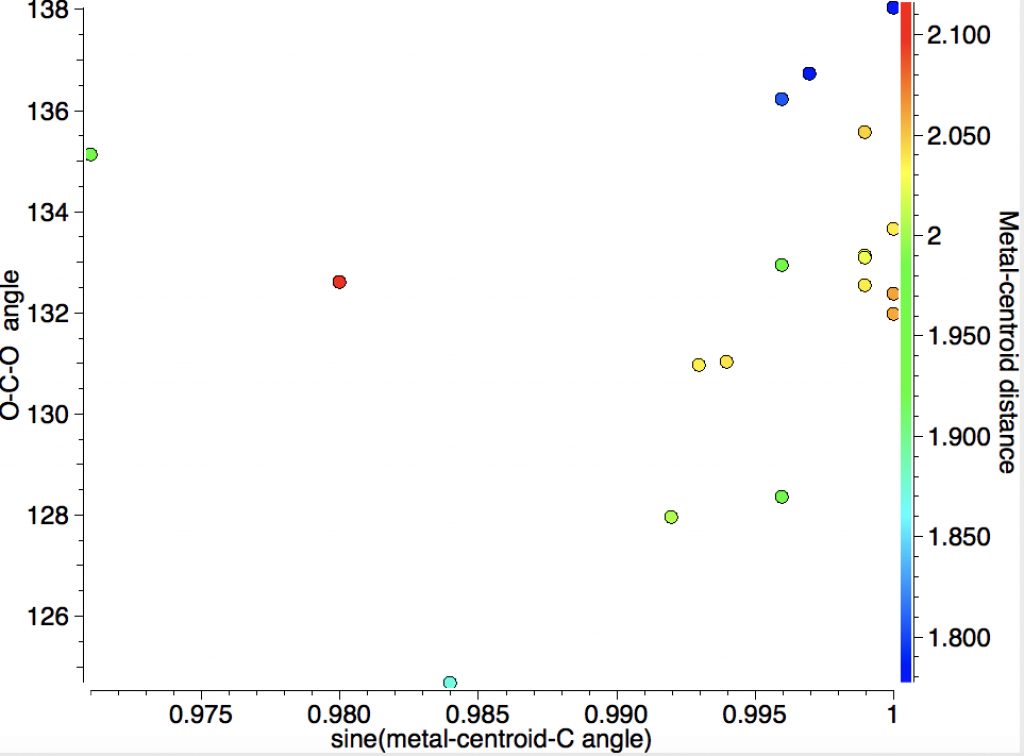

    The sine of the angle subtended at the centroid of one C-O bond shows that for most of the examples, the metal is close to perpendicular to this bond. The angle subtended at the central carbon ranges from 128-138, rather larger than the examples where the metal is bound just to the carbon. I have picked these two for illustration. The first (dataDOI: 10.5517/cc86r17) contains both CO2 and CO coordinated to the metal.This one (dataDOI: 10.1021/ic101652e) contains a short metal-centroid distance of 1.78Å (as also does 10.5517/ccz34kr).

    There are two examples where BOTH π-CO bonds are coordinated to a metal; 10.5517/ccqlv7c and 10.5517/ccqlv8d (Ni-centroid distance 1.9Å) but these are intriguing because the two π-complexes are co-planar and not orthogonal.

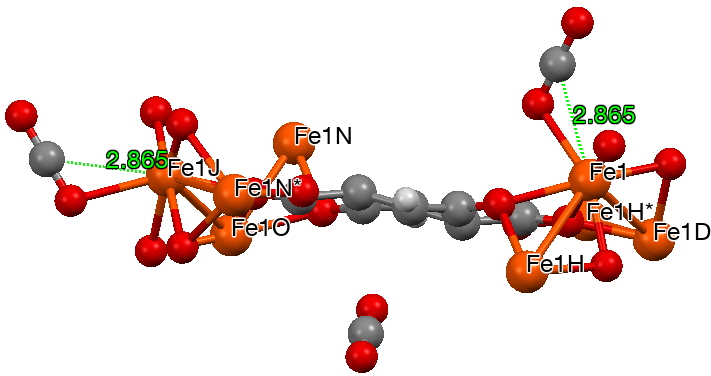

  4. The final two cases are defined in the CSD database by having not so much bonds between metal and either C or O, as close intermolecular contacts typical of e.g. hydrogen bonds. This one (dataDOI: 10.5517/cc12nq9r) is to Fe, with a metal-C distance of 2.87Å which is significantly shorter than the anticipated sum of the van der Waals radii of the two atoms. The next (dataDOI: 10.5517/cc12npn2) has a close approach of Co to O of 2.23Å. The angles subtended at the carbon range from 174-180°. There are no convincing examples of close non-bonded approaches of the metal to both oxygen atoms simultaneously.

It is striking that the searches (as defined above) reveal relatively few examples. This might simply be a result of how the compounds are indexed in the CSD, reflected in the coordination constraints applied in the searches. Nevertheless, we see three quite different types of ligand-metal coordination in which bonds can be said to form and a more diffuse spectrum of weaker interactions to carbon dioxide. As a metal ligand, it is certainly interesting! Several deserve their wavefunctions looked at and I might report back on this aspect.

Popular Posts:

Tags: , , , , , , , , , , , , ,

2 Responses to “
How does carbon dioxide coordinate to a metal?

  1. Henry Rzepa says:

    One of my interest points was the structure of the double π-complexed Ni species reported at DOI: 10.1021/ja075630g, noting that the two π-complexes shared the same plane, rather than being orthogonal to each other.

    I thought I might check this suggestion out by using allene (H2C=C=CH2) rather than O=C=O. The two double bonds in allene are of course orthogonal to each other and double π-complexes should reflect this. The search query defines centroids for both CC bonds and then charts the torsion angle about the centroid-centroid axis.

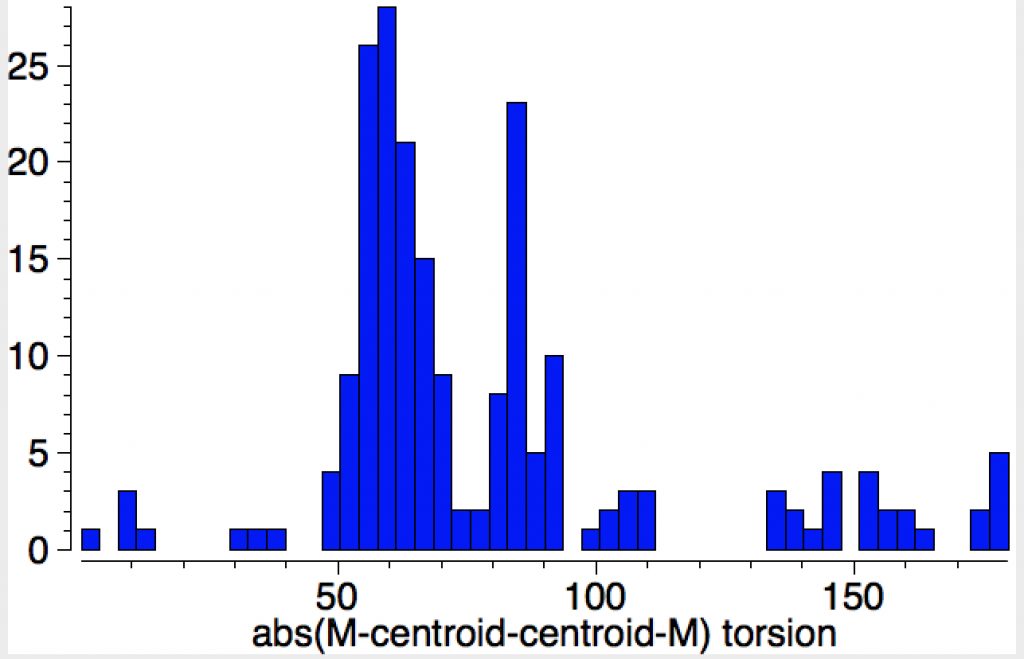

    You can see from the results that 156 examples of such double π-coordination are known and that the majority have a torsion about the centroid axis of either ~60 or ~90°. Of more interest is that a small number cluster at ~10 (e.g. DOI: 10.1021/om00056a051) and ~180°. The Ni-CO2 complex noted above belongs to the former class, and so is seen as relatively unusual!

    More analysis to follow.

    • Henry Rzepa says:

      Here is an ELF (electron localisation function) analysis:

      This shows that the Ni metal atoms do not coordinate in π-complex fashion to each of the two C=O bonds, but instead the interaction is a two-electron-three-centre interaction between the two Ni atoms and the carbon of the CO2, a quite different beast.

Leave a Reply
