Does forming a Wheland intermediate disrupt all aromaticity?

Text books will announce that during aromatic electrophilic substitution, aromaticity is lost by the formation of a Wheland intermediate (and regained by eliminating a proton). Is that entirely true?wheland

I will start by considering the simplest of all such intermediates[1],[2] the NMR of which was first reported by Olah and which is shown below (red). The values in black are from a ωB97XD/6-311G(d,p) calculation (chloroform)[3]. The discrepancy might be due to the difference in solvent (HF-SbF5/SO2ClF-SO2F2) and my failure to include a counter-ion in the calculation. Actually, this result is only obtained at -134°C; warming to -70°C increases the rate of [1,2] ring shifts and only one “aromatic” peak at 8.09 ppm is observed.

Click for  3D

Click for 3D to see vibrational modes

 The computed MOs are shown below. MOs 21 and 15 are pretty much identical with those for benzene itself (the former because of symmetry),  so relatively little disruption of the conjugation there. An NBO analysis shows that each C-H bond from the sp3 centre acts as a donor to the π-system (E2 = 8.5 kcal/mol), which we know in another guise as hyperconjugation or σ-conjugation. In this sense, the two C-H bonds are acting as surrogates for a real p-AO on that carbon, and the E2 value is certainly not insignificant. Certainly they are nowhere near as good a donor as one real p-AO, but nonetheless, the two of them together are good enough to result in retention of a significant measure of cyclic π-conjugation, and hence probably aromaticity. The C-H bonds are weakened as a result of their electron donation, which reduces their normal mode wavenumber down by about 200 cm-1. The so-called Kekule-mode, which is depressed in benzene itself to about 1300 cm-1 because of the effect termed π-distortivity[4], is actually increased to 1442 cm -1 in the Wheland intermediate.[3] This mode is normally elevated by any weakening of the distortive π-system (in my previous post, I noted such an elevation induced by the quintet excited state of benzene) and so we many presume the same effect operates in the Wheland intermediate.


Click for  3D

MO 20 Click for 3D


Click for  3D

MO 21 Click for 3D

Click for  3D

MO 15 Click for 3D

To get a measure of any aromaticity deriving from a ring current, I computed the NICS(1) value from the ring centroid. This latter was itself obtained from the coordinates of the ring-critical-point determined by a QTAIM analysis, and computed at that point and 1, 2 and 3Å above it. The NICS values are respectively -0.4, -6.1, -3.6 and -1.6 ppm. The maximum is indeed the NICS(1) point, and at that point, the value indicates modest, but real π-aromaticity.

wheland-NICS

So does forming a Wheland intermediate disrupt all aromaticity? The answer is a clear no! What might be interesting to compute (I have not tried doing so here) is an actual energy for the stabilisation resulting from the weak aromaticity present as a % of that present in benzene, so that the text-books can be amended.


It might also be that the exchange in the measured NMR spectrum was not entirely suppressed, and so some residual averaging of the peak positions remains.

Popular Posts:

References

  1. G.A. Olah, R.H. Schlosberg, D.P. Kelly, and G.D. Mateescu, "Stable carbonium ions. IC. Benzenonium ion (C6H7+) and its degenerate rearrangement", J. Am. Chem. Soc., vol. 92, pp. 2546-2548, 1970. http://dx.doi.org/10.1021/ja00711a057
  2. G.A. Olah, R.H. Schlosberg, R.D. Porter, Y.K. Mo, D.P. Kelly, and G.D. Mateescu, "Stable carbocations. CXXIV. Benzenium ion and monoalkylbenzenium ions", J. Am. Chem. Soc., vol. 94, pp. 2034-2043, 1972. http://dx.doi.org/10.1021/ja00761a041
  3. Henry S. Rzepa., "Gaussian Job Archive for C6H7(1+)", 2013. http://dx.doi.org/10.6084/m9.figshare.870473
  4. S. Shaik, A. Shurki, D. Danovich, and P.C. Hiberty, " A Different Story of π-DelocalizationThe Distortivity of π-Electrons and Its Chemical Manifestations † ", Chem. Rev., vol. 101, pp. 1501-1540, 2001. http://dx.doi.org/10.1021/cr990363l

Tags:

25 Responses to “Does forming a Wheland intermediate disrupt all aromaticity?

  1. Paul Schleyer says:

    Mulliken pointed out long ago that CH2 groups in C6H7(+) hyperconjugate (cf., Wu, Pure Appl. Chem, 2013, 85, 921). However, CHX groups in C6H6X+ species (where X is electronegative) do not and are not aromatic (cf., ACIE, 2011, 50, 6089)

    NICSpizz (OL, 2006, 8, 863) is much more refined than isotropic NICS.

  2. Henry Rzepa says:

    Thanks for the background Paul. Yes, more to come on the better analysis of the aromaticity, and also the vibrations.

    As for X=electronegative, yes they would release electrons more poorly. Conversely, electropositive X (Si?) might enhance the effect (Li?). In fact you have calculated so much Li in the past, I am sure that C6H5Li2(+) must be in your archive? Is the Li(+) bound to the centre of the benzene ring?

  3. Henry Rzepa says:

    In the post, I mentioned that the Wheland intermediate Kekule mode was elevated compared that of benzene. To be more accurate, one needs to remove the mass weighting from these frequencies. One can do this with a little trick in fact, which is to reduce the mass of the hydrogens to almost zero.

    Now, the Kekule mode of benzene comes out as 1317, and that of its Wheland intermediate 1504. So the exaltation of this mode due to the weakening of the π-system is still real.

  4. Henry Rzepa says:

    Here is an odd result. I calculated the dilithio system and did the reduced mass trick (using the kekule mode as a scale of aromaticity). I got 1278 cm-1 for this mode, even more depressed than benzene itself.

    But a system well worth reporting on later. I note for the time being that all six C-C bonds in this system are very close to 1.40Å, so it is certainly aromatic.

    Dili

  5. I try effect of hyperconjugation and replace CH2 for CMe2. There was no effect on anizotropy: details

  6. Henry Rzepa says:

    Another variation is to replace the H-C-H group with a H-B-H, which results in greater electron release into the aromatic ring. The computed MOs resemble those of benzene itself far more closely than the benzene Wheland, and the Kekule mode is 1377 cm-1, only modestly elevated compared to benzene itself. One might speculate whether this (neutral) analogue of the Wheland intermediate is capable of being synthesised.
    B-20

  7. Henry Rzepa says:

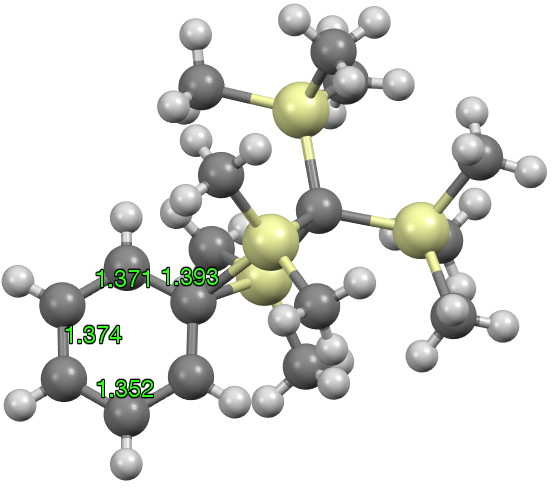

    Re: replace CH2 for CMe2. I do recollect a crystal structure where CH2 is replaced by C(SiR3)2. See doi: 10.1039/b513203g. The counterion is BAr4(-) and the structure is shown below. Note that the bond to the 4-substituted ring carbon is only slightly longer than the others, and highly typical of an aromatic bond. So we may presume that C-Si is also very electron releasing.
